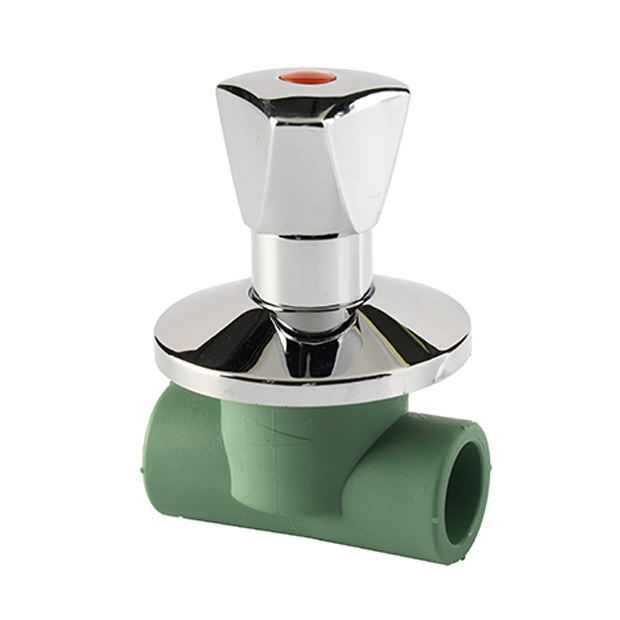

STOP VALVE CONCEALED ASSEMBLY – EXTENDED
SDR 6
for concealed installation
Colour coded for hot and cold water.
Rosette d76 mm.
| Article | d | L | z | D | H | d1 | kg |
|---|---|---|---|---|---|---|---|
| 5155 29525 | 20 | 79 | 25 | 35 | 100 | 25 | 0,382 |
| 5155 29526 | 25 | 79 | 23 | 35 | 100 | 25 | 0,374 |
| 5155 29527 | 32 | 97 | 30 | 44 | 100 | 25 | 0,478 |
