PIPE FIBER SDR 9 PP-RCT
length of pipes = 4 m
Recognizable by four red stripes.
Suitable for hot and cold water and central heating.
ISO 15874 class 1/8, 2/6, 4/8, 5/6 bar.
DIN 8077/8078 20°C/16 bar, 70°C/8 bar.

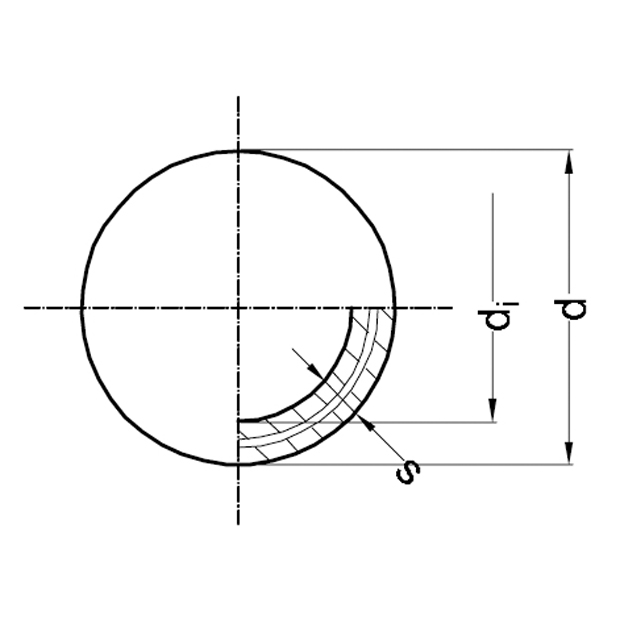

| Article | d x s | di | l/m | DN | kg |
|---|---|---|---|---|---|
| 5152 27303 | 32 x 3,6 | 24,8 | 0,483 | 25 | 1,163 |
| 5152 27304 | 40 x 4,5 | 31,0 | 0,755 | 32 | 1,817 |
| 5159 27305 | 50 x 5,6 | 38,8 | 1,182 | 40 | 2,828 |
| 5159 27306 | 63 x 7,1 | 48,8 | 1,870 | 50 | 4,514 |
| 5159 27307 | 75 x 8,4 | 58,2 | 2,660 | – | 6,362 |
| 5159 27309 | 90 x 10,1 | 69,8 | 3,826 | 65 | 9,177 |
| 5159 27311 | 110 x 12,3 | 85,4 | 5,728 | 80 | 13,666 |
| 5159 27312 | 125 x 14,0 | 97,0 | 7,390 | 100 | 17,672 |
