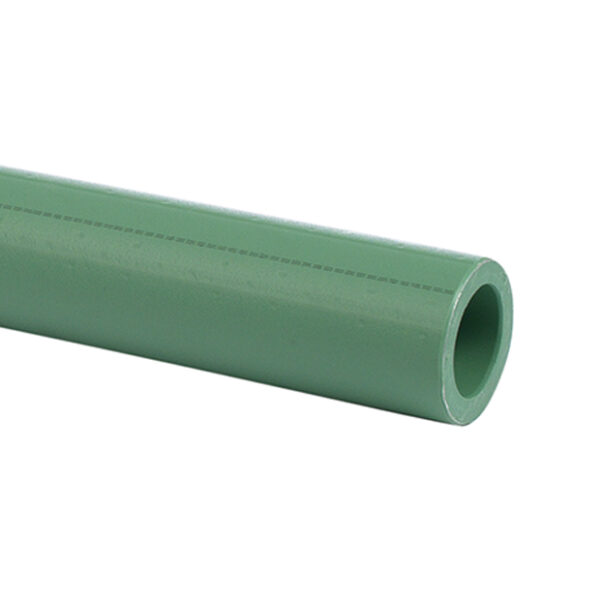

PIPE STABI SDR 7,4 PP-R

0 out of 5

WITH PERFORATED ALUMINIUM LAYER

length of pipes = 4 m
Suitable for hot and cold water and central heating.
ISO 15874 class 1/8, 2/6, 4/10, 5/6 bar.
DIN 8077/8078 20°C/16 bar, 70°C/6 bar.

This product is currently out of stock and unavailable.

SKU: N/A Categories: All products, Pipes PP-R
Article d x s di dg sg l/m DN kg
5155 20301 20 x 2,8 14,4 21,6 3,6 0,163 15 0,792
5155 20302 25 x 3,5 18,0 26,8 4,4 0,254 20 1,176
5155 20303 32 x 4,4 23,2 33,8 5,4 0,423 25 1,816
5155 20304 40 x 5,5 29,0 42,0 6,6 0,661 32 2,736
5155 20305 50 x 6,9 36,2 52,0 7,9 1,029 40 4,136
5155 20306 63 x 8,6 45,8 65,0 9,7 1,647 6,404
5155 20307 75 x 10,3 54,4 77,0 11,4 2,324 60 8,988
5155 20308 90 x 12,3 65,4 92,0 13,5 3,359 65 12,920
5155 20309 110 x 15,1 79,8 113,0 16,7 5,001 80 19,500
