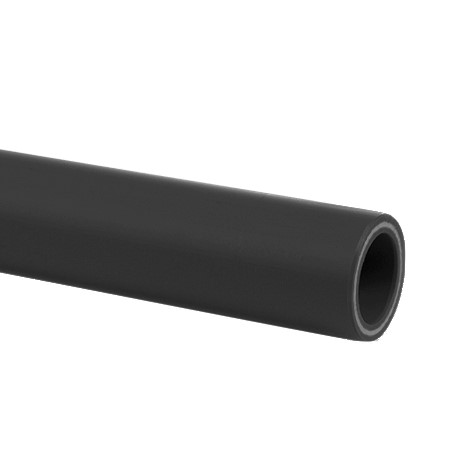

Pipe Industrial Fiber SDR 11 – Black PP-RCT
Length of pipes = 5,8m (other length on request)
Suitable for heating, air conditioning and climate control.
ISO 15874 class 1/6, 2/6, 4/6, 5/4 bar.
DIN 8077/8078 20 °C/16 bar, 70 °C/6 bar

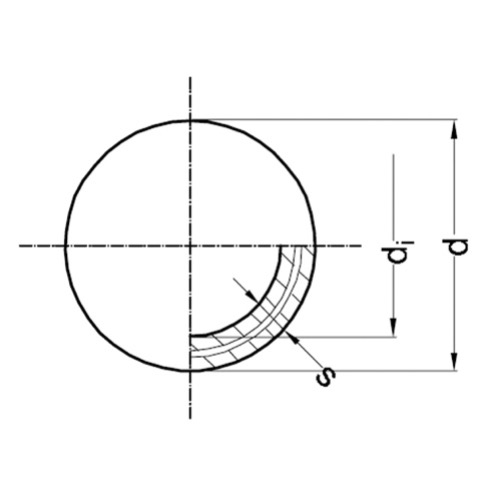

| Article | d x s | di | l/m | DN | kg |
|---|---|---|---|---|---|
| 515020200 | 20 x 2,8 | 14,4 | 0,16 | 15 | 0,87 |
| 515020201 | 25 x 3,5 | 18 | 0,25 | 20 | 1,392 |
| 515020202 | 32 x 2,9 | 26,2 | 0,53 | 25 | 1,508 |
| 515020203 | 40 x 3,7 | 32,6 | 0,83 | 32 | 2,378 |
| 515020204 | 50 x 4,6 | 40,8 | 1,31 | 40 | 4,002 |
| 515020205 | 63 x 5,8 | 51,4 | 2,08 | 50 | 5,858 |
| 515020206 | 75 x 6,8 | 61,4 | 2,94 | 60 | 8,178 |
| 515020207 | 90 x 8,2 | 73,6 | 4,2 | 65 | 11,774 |
| 515020208 | 110 x 10 | 90 | 6,36 | 80 | 17,458 |
| 515020209 | 125 x 11,4 | 102,2 | 8,2 | 100 | 22,678 |
| 515020210 | 160 x 14,6 | 130,8 | 13,44 | 125 | 37,178 |
| 515020211 | 200 x 18,2 | 163,6 | 21,03 | 150 | 58 |
| 515020212 | 250 x 22,7 | 204,6 | 32,87 | 200 | 90,48 |
