PIPE FIBER SDR 7,4 PP-R
length of pipes = 4 m
Recognizable by four red stripes.
Suitable for hot and cold water.
ISO 15874 class 1/8, 2/6, 4/10, 5/6 bar.
DIN 8077/8078 20°C/16 bar, 70°C/8 bar.

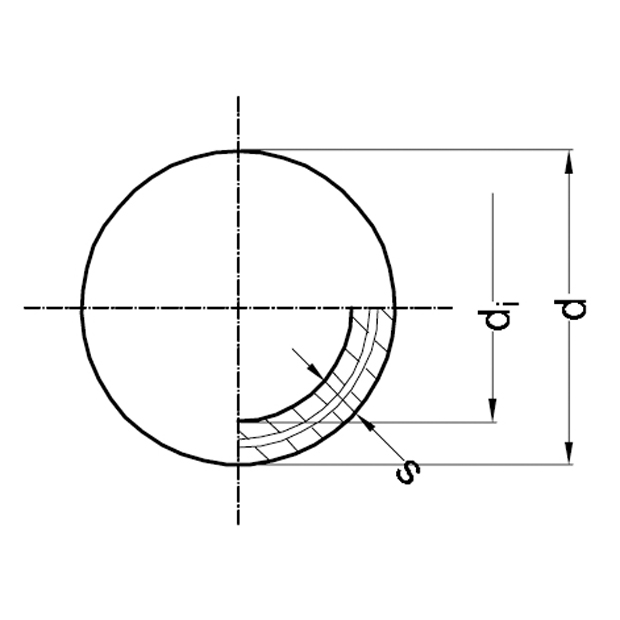

| Article | d x s | di | l/m | DN | kg |
|---|---|---|---|---|---|
| 5155 20150 | 20 x 2,8 | 14,4 | 0,163 | 15 | 0,608 |
| 5155 20151 | 25 x 3,5 | 18,0 | 0,254 | 20 | 0,944 |
| 5155 20152 | 32 x 4,4 | 23,2 | 0,415 | 25 | 1,532 |
| 5155 20153 | 40 x 5,5 | 29,0 | 0,615 | 32 | 2,376 |
| 5155 20154 | 50 x 6,9 | 36,2 | 1,029 | 40 | 3,716 |
| 5155 20155 | 63 x 8,6 | 45,8 | 1,633 | 50 | 5,816 |
| 5155 20156 | 75 x 10,3 | 54,4 | 2,307 | – | 8,284 |
| 5155 20157 | 90 x 12,3 | 65,4 | 3,318 | 65 | 11,908 |
| 5155 20158 | 110 x 15,1 | 79,8 | 5,001 | 80 | 17,816 |
| 5155 20159 | 125 x 17,1 | 90,8 | 6,470 | 100 | 23,380 |
