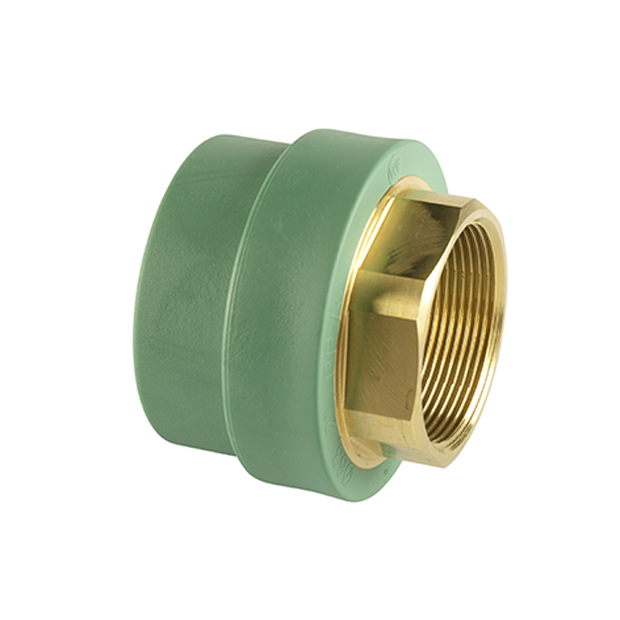

TRANSITION HEXAGON FEMALE
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

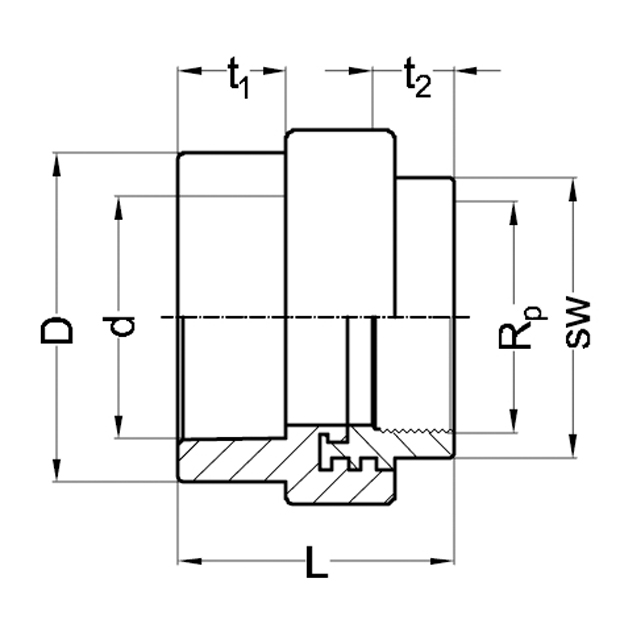

Article | d x Rp | L | t1 | t2 | D | SW | kg | |
---|---|---|---|---|---|---|---|---|
5155 28204 | 32 x 1″ | 60 | 18 | 22 | 61 | 39 | 0,240 | |
5155 28205 | 40 x 1¼” | 63 | 21 | 22 | 72 | 47 | 0,347 | |
5155 28206 | 50 x 1½” | 85 | 24 | 20 | 79 | 52 | 0,396 | |
5155 28207 | 63 x 2″ | 75 | 28 | 25 | 95 | 66 | 0,612 | |
5155 28208 | 75 x 2″ | 83 | 31 | 25 | 100 | 66 | 0,668 | |
5155 28213 | 125 x 5″ | PP-RCT | 124 | 40 | 44 | 208 | 149 | 0,383 |
