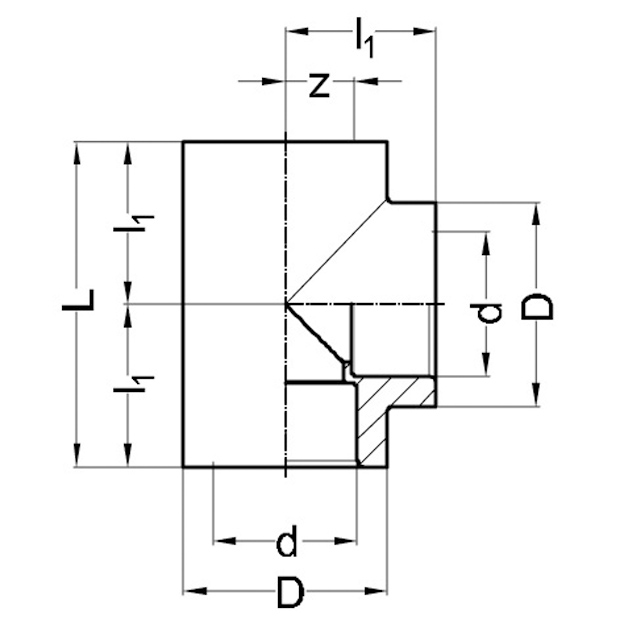

Article | d | D | L | l1 | z | kg |
---|---|---|---|---|---|---|
5155 24002 | 20 | 29,5 | 50,6 | 25,3 | 10,8 | 0,023 |
5155 24003 | 25 | 34,0 | 60,0 | 30,0 | 14,0 | 0,033 |
5155 24004 | 32 | 44,0 | 69,0 | 34,5 | 16,4 | 0,062 |
5155 24005 | 40 | 53,5 | 85,6 | 42,8 | 22,3 | 0,105 |
5155 24006 | 50 | 68,0 | 120,0 | 60,0 | 36,5 | 0,188 |
5155 24007 | 63 | 85,0 | 118,0 | 59,0 | 31,5 | 0,372 |
5155 24008 | 75 | 99,5 | 140,6 | 70,3 | 39,3 | 0,557 |
5155 24009 | 90 | 119,0 | 160,0 | 80,0 | 44,5 | 0,956 |
5155 24010 | 110 | 144,5 | 197,6 | 98,8 | 57,3 | 1,745 |
5155 24011 | 125 | 164,5 | 245,6 | 122,8 | 82,8 | 2,780 |
