PIPE WEFAKLIM FIBER SDR 11 – GREY PP-RCT
length of pipes = 4 m
Recognizable by four blue stripes (d20 and d25 without stripes).
Suitable for heating, air conditioning and climate control.
ISO 15874 class 1/6, 2/6, 4/6, 5/4 bar.
DIN 8077/8078 20°C/16 bar, 70°C/6 bar.

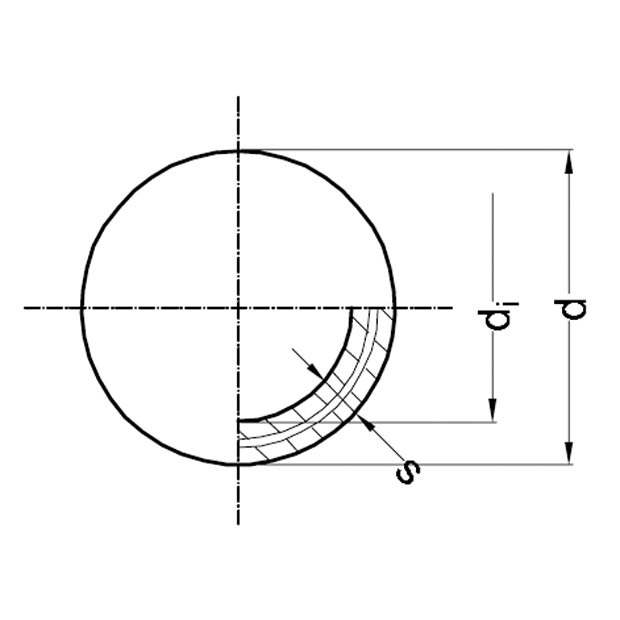

| Article | d x s | di | l/m | DN | kg | |
|---|---|---|---|---|---|---|
| 5150 20130 | 20 x 2,8 | without blue stripes | 14,4 | 0,163 | 15 | 0,608 |
| 5150 20131 | 25 x 3,5 | without blue stripes | 18,0 | 0,254 | 20 | 0,944 |
| 5150 20132 | 32 x 2,9 | 26,2 | 0,539 | 25 | 1,544 | |
| 5150 20133 | 40 x 3,7 | 32,6 | 0,835 | 32 | 2,440 | |
| 5150 20134 | 50 x 4,6 | 40,8 | 1,307 | 40 | 3,696 | |
| 5150 20135 | 63 x 5,8 | 51,4 | 2,075 | 50 | 4,224 | |
| 5150 20136 | 75 x 6,8 | 61,4 | 2,961 | 60 | 8,404 | |
| 5150 20137 | 90 x 8,2 | 73,6 | 4,254 | 65 | 8,268 | |
| 5150 20138 | 110 x 10,0 | 90,0 | 6,362 | 80 | 12,744 | |
| 5150 20139 | 125 x 11,4 | 102,2 | 8,203 | 100 | 16,396 | |
| 5150 20140 | 160 x 14,6 | 130,8 | 13,437 | 125 | 26,100 |
