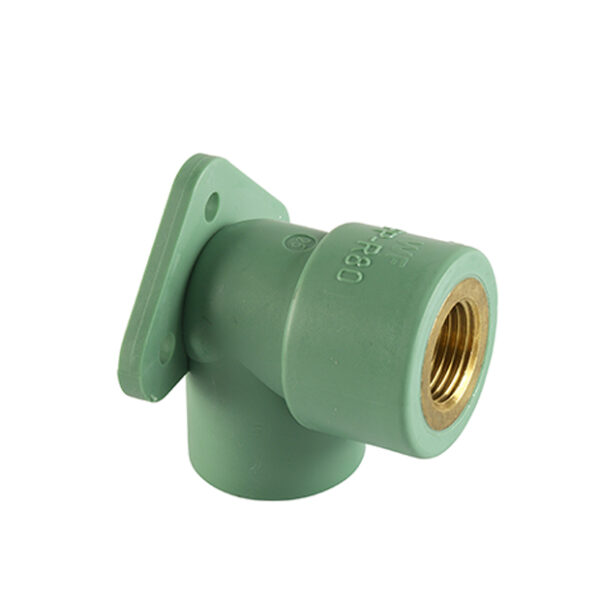

BACK PLATE ELBOW FEMALE
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

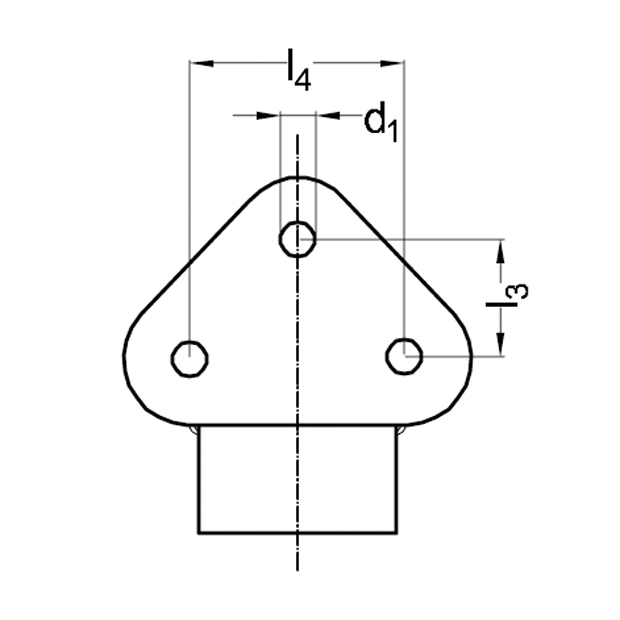

| Article | d x Rp | D | D1 | d1 | L | 11 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|
| 5155 29002 | 20 x ½” | 30,0 | 39 | 5,5 | 53,0 | 38,0 | 32 | 19,5 |
| 5155 29003 | 20 x ¾” | 34,0 | 44 | 5,5 | 57,5 | 40,5 | 32 | 19,5 |
| 5155 29004 | 25 x ½” | 34,0 | 40 | 5,5 | 54,5 | 37,5 | 32 | 19,5 |
| 5155 29005 | 25 x ¾” | 34,5 | 44 | 5,5 | 57,5 | 40,3 | 32 | 19,5 |
