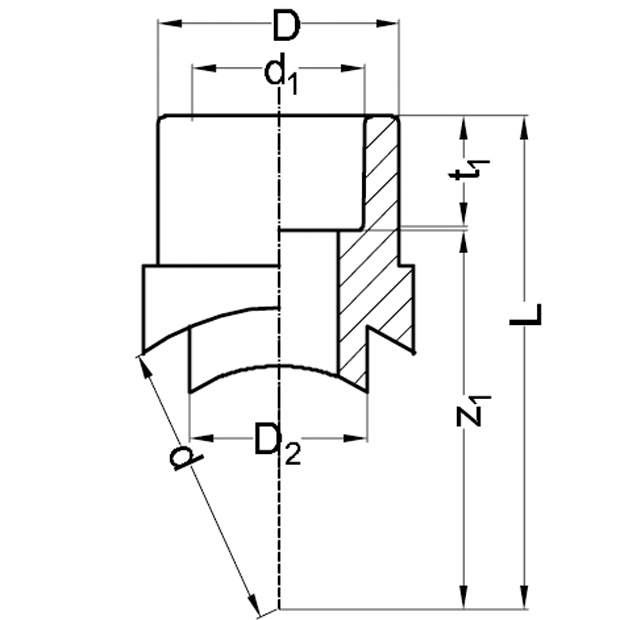

WELD-IN SADDLE PP-RCT
| Article | d/ | d1 | D | D2 | t1 | z1 | L | SW |
|---|---|---|---|---|---|---|---|---|
| 5152 43007 | 40-63 | /32 | 51 | 32 | 20 | 9 | – | – |
| 5152 43010 | 75-125 | /32 | 51 | 32 | 20 | 9 | – | 51 |
| 5152 43011 | 75-125 | /40 | 63 | 40 | 22 | 16 | – | 63 |
| 5152 43018 | 110-125 | /50 | 70 | 50 | 25 | 14 | – | 70 |
| 5152 43024 | 125 | /63 | 85 | 63 | 30 | 15 | – | 85 |
| 5152 43026 | 160-250 | /20 | 38 | 16 | 29 | 13 | – | 38 |
| 5152 43027 | 160-250 | /25 | 38 | 18 | 29 | 11 | – | 38 |
| 5152 43028 | 160-250 | /32 | 51 | 20 | 35 | 15 | – | 51 |
| 5152 43029 | 160-250 | /40 | 63 | 22 | 38 | 16 | – | 63 |
| 5152 43030 | 160-250 | /50 | 70 | 25 | 39 | 14 | – | 70 |
| 5152 43031 | 160-250 | /63 | 85 | 30 | 45 | 15 | – | 85 |
| 5152 43037 | 315 | /20 | 38 | 16 | 29 | 13 | – | 38 |
| 5152 43038 | 315 | /25 | 38 | 18 | 29 | 11 | – | 38 |
| 5152 43039 | 315 | /32 | 51 | 20 | 35 | 15 | – | 51 |
| 5152 43040 | 315 | /40 | 63 | 22 | 38 | 16 | – | 63 |
| 5152 43041 | 315 | /50 | 70 | 25 | 39 | 14 | – | 70 |
| 5152 43042 | 315 | /63 | 85 | 30 | 45 | 15 | – | 85 |
