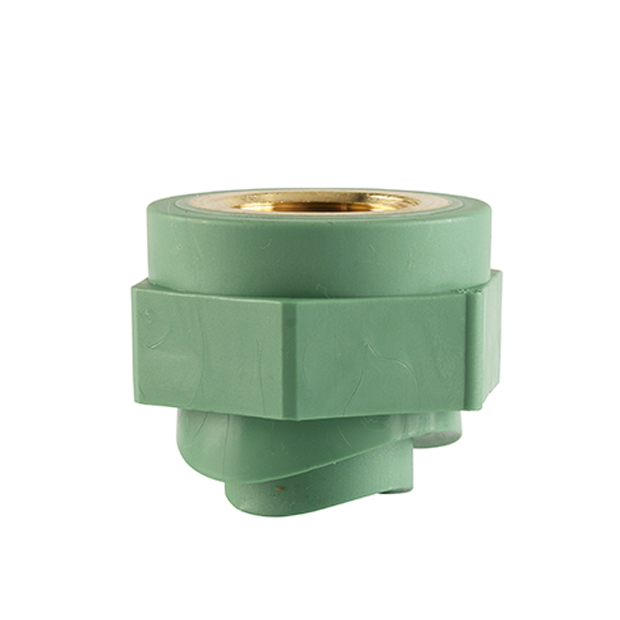

WELD-IN SADDLE FEMALE PP-R
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

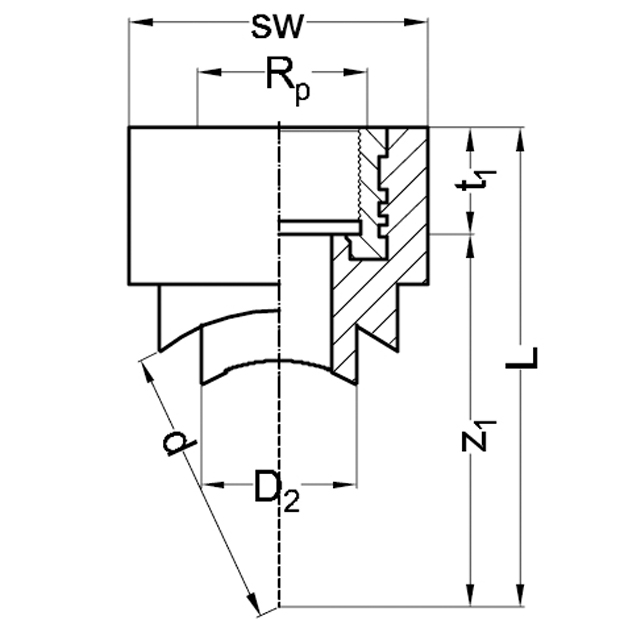

Article | d x Rp | D2 | t1 | z1 | L | SW | kg |
---|---|---|---|---|---|---|---|
5155 28071 | 40 x ½” | 25 | 15 | 35 | 50 | 38 | 0,067 |
5155 28072 | 50 x ½” | 25 | 15 | 34 | 49 | 46 | 0,067 |
5155 28073 | 63 x ½” | 25 | 15 | 39 | 54 | 38 | 0,068 |
5155 28074 | 75 x ½” | 25 | 15 | 39 | 54 | 46 | 0,066 |
5155 28075 | 90 x ½” | 25 | 15 | 45 | 60 | 38 | 0,061 |
5155 28076 | 110 x ½” | 25 | 15 | 46 | 61 | 46 | 0,070 |
5155 28077 | 125 x ½” | 25 | 15 | 52 | 67 | 38 | 0,070 |
5155 28171 | 40 x ¾” | 25 | 15 | 59 | 74 | 38 | 0,094 |
5155 28172 | 50 x ¾” | 25 | 15 | 59 | 74 | 46 | 0,096 |
5155 28173 | 63 x ¾” | 25 | 15 | 69 | 84 | 36 | 0,094 |
5155 28174 | 75 x ¾” | 25 | 15 | 69 | 84 | 46 | 0,094 |
5155 28175 | 90 x ¾” | 25 | 15 | 77 | 92 | 38 | 0,095 |
5155 28176 | 110 x ¾” | 25 | 15 | 77 | 92 | 46 | 0,095 |
5155 28177 | 125 x ¾” | 25 | 15 | 52 | 67 | 46 | 0,096 |
