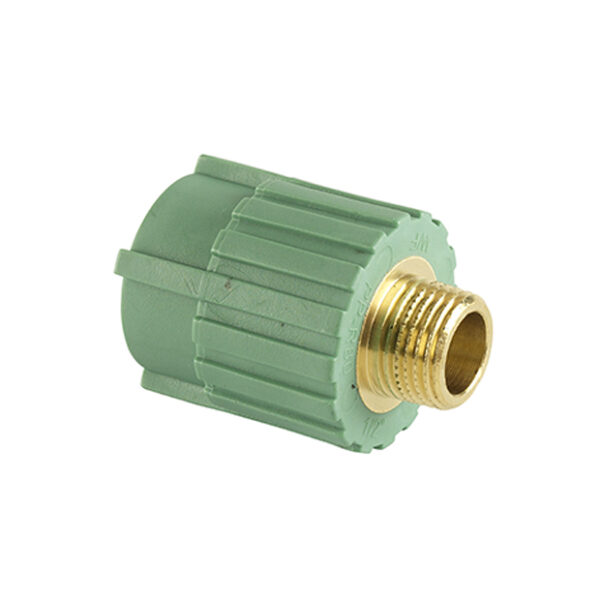

TRANSITION ROUND MALE
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

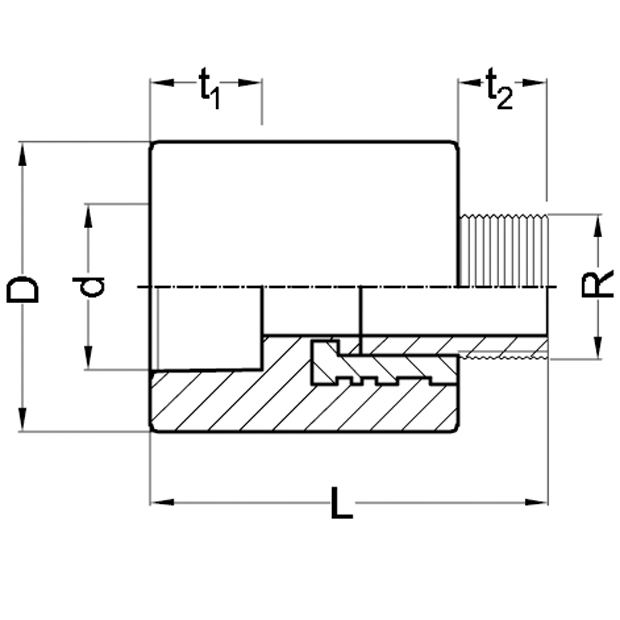

Article | d x R | L | t1 | t2 | D | kg |
---|---|---|---|---|---|---|
5155 29101 | 20 x ½” | 56 | 15 | 13 | 41 | 0,098 |
5155 29102 | 20 x ¾” | 61 | 15 | 17 | 47 | 0,164 |
5155 29103 | 25 x ½” | 56 | 16 | 13 | 41 | 0,101 |
5155 29104 | 25 x ¾” | 61 | 16 | 17 | 47 | 0,161 |
