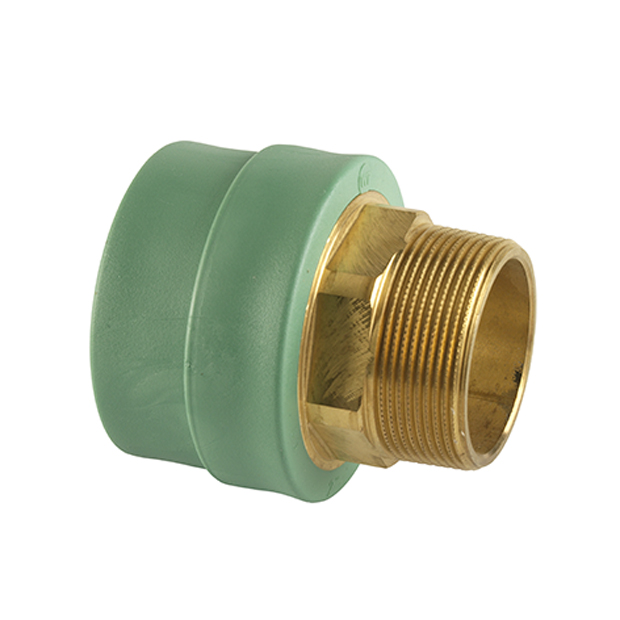

TRANSITION HEXAGON MALE
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

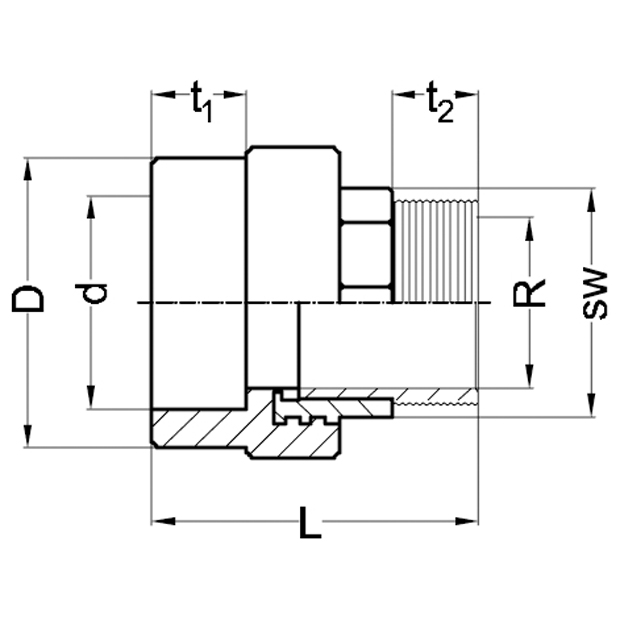

Article | d x R | L | t1 | t2 | D | SW | kg | |
---|---|---|---|---|---|---|---|---|
5155 29204 | 32 x 1″ | 79 | 18 | 20 | 53 | 32 | 0,240 | |
5155 29205 | 40 x 1¼” | 80 | 20 | 21 | 67 | 44 | 0,438 | |
5155 29206 | 50 x 1½” | 85 | 24 | 21 | 74 | 48 | 0,498 | |
5155 29207 | 63 x 2″ | 95 | 28 | 24 | 90 | 60 | 0,711 | |
5155 29208 | 75 x 2½” | 110 | 31 | 24 | 98 | 65 | 1,033 | |
5155 29209 | 90 x 3″ | 128 | 36 | 29 | 120 | 86 | 1,437 | |
5155 29210 | 110 x 3″ | 128 | 42 | 29 | 147 | 86 | 1,643 | |
5155 29211 | 110 x 4″ | 140 | 42 | 30 | 148 | 105 | 2,770 | |
5155 29212 | 125 x 5″ | PP-RCT | 170 | 40 | 42 | 208 | 149 | 5,250 |
