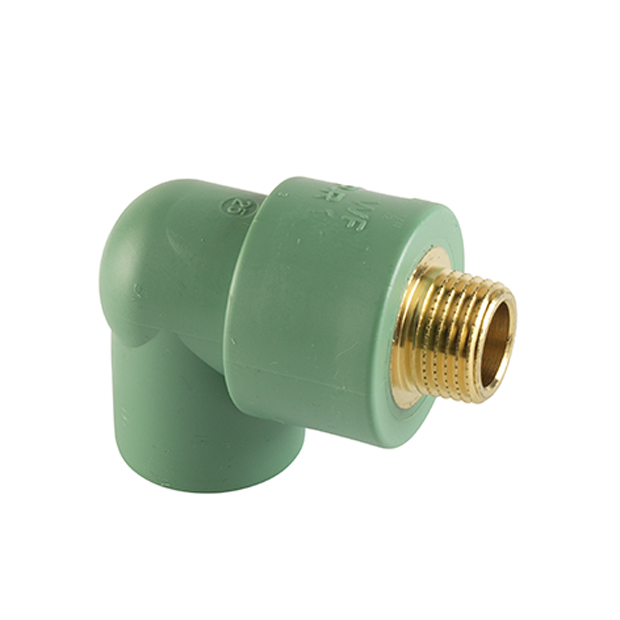

TRANSITION ELBOW 90° MALE
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.
Article | d x Rp | D | L1 | t1 | z1 | t2 | z2 | |
---|---|---|---|---|---|---|---|---|
5155 28401 | 20 x ½” | 40 | 32 | 15 | 17 | 12 | 41 | |
5155 28402 | 20 x ¾” | 44 | 32 | 15 | 17 | 15 | 43 | |
5155 28403 | 25 x ½” | 40 | 32 | 16 | 16 | 12 | 41 | |
5155 28404 | 25 x ¾” | 44 | 32 | 16 | 16 | 15 | 43 | |
5155 28405 | 25 x ¾” | 44 | 30 | 18 | 12 | 15 | 52 | |
5155 28406 | 25 x 1″ | with hexagon for wrench | 54 | 32 | 18 | 14 | 20 | 64 |
