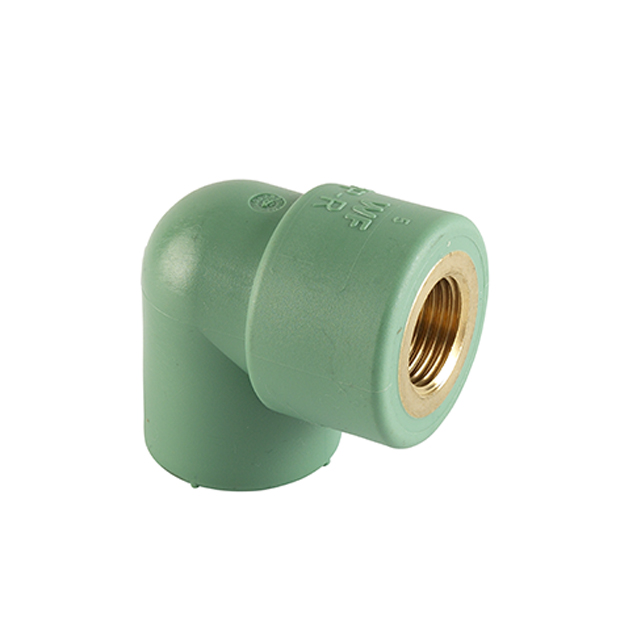

TRANSITION ELBOW 90° FEMALE

0 out of 5

SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

Categories: All products, Fittings

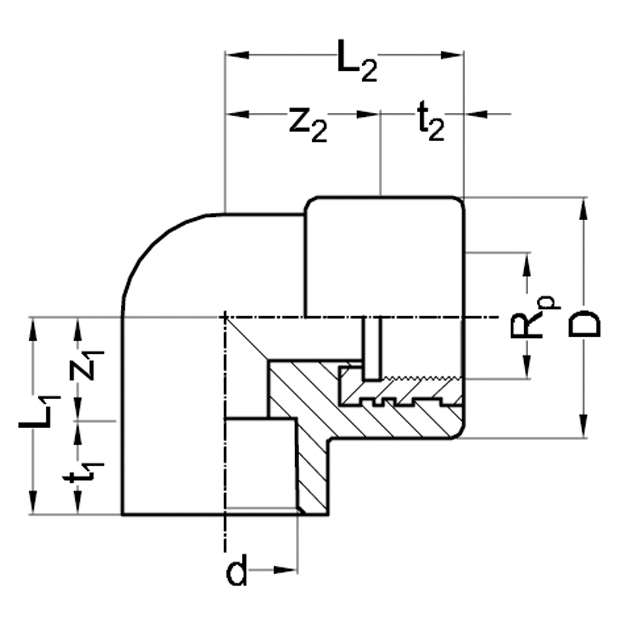

Article	d x R_p	D	L₁	t₁	z₁	t₂	Z₂	L₂
5155 28301	20 x ½”	40	33	15	18	17	22	39
5155 28302	20 x ¾”	44	33	15	18	17	22	39
5155 28303	25 x ½”	40	33	16	17	17	22	39
5155 28304	25 x ¾”	44	33	16	17	17	22	59
5155 28305	32 x ¾”	44	31	18	13	17	33	50
5155 28306	32 x 1″	60	31	18	13	22	42	64
