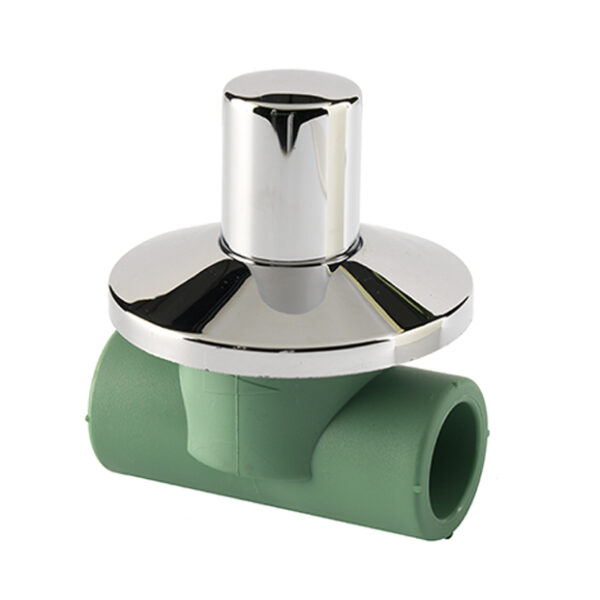

STOP VALVE CONCEALED ASSEMBLY (TAMPER RESISTANT)
SDR 6
for concealed installation
For use in public accessible areas.
Rosette 76 mm.

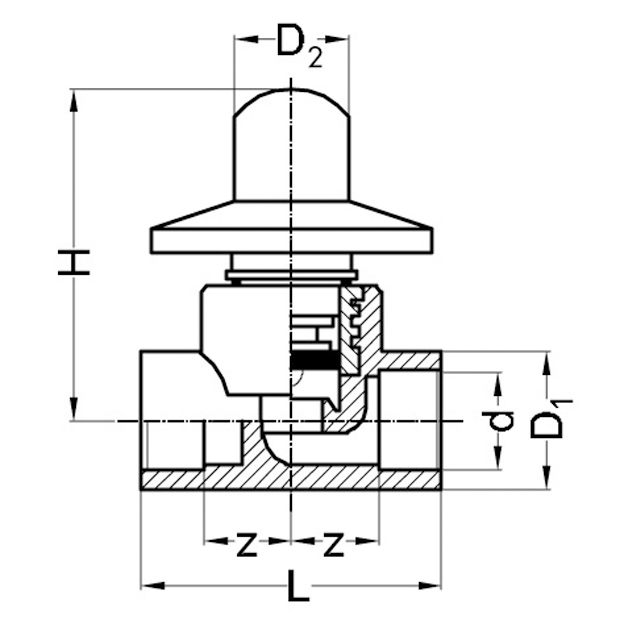

Article | d | L | z | D | H | d1 | kg |
---|---|---|---|---|---|---|---|
5155 29515 | 20 | 79 | 25 | 35 | 72 | 28 | 0,288 |
5155 29516 | 25 | 79 | 23 | 35 | 72 | 28 | 0,281 |
5155 29517 | 32 | 97 | 30 | 35 | 72 | 28 | 0,281 |
