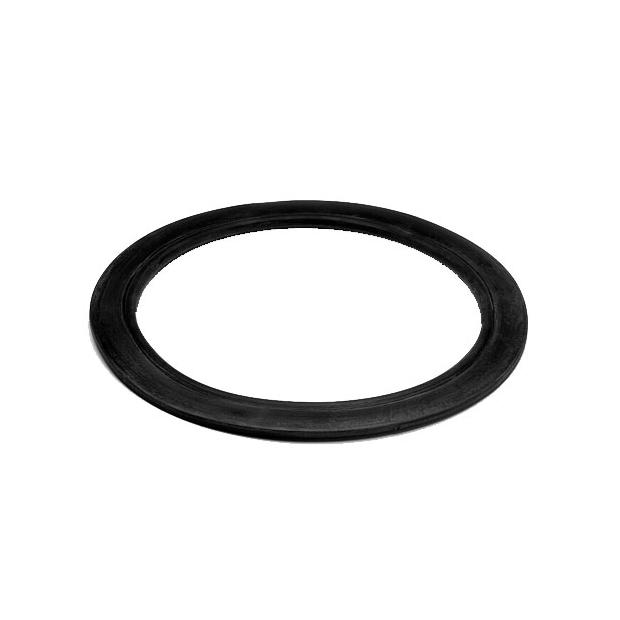

PROFILE GASKET EPDM
WITH STEEL CORE
for stub flanges SDR 11
Suitable for flange connections with maximum
operating pressure water 16 bar.
With KTW-certification for potable water
application.

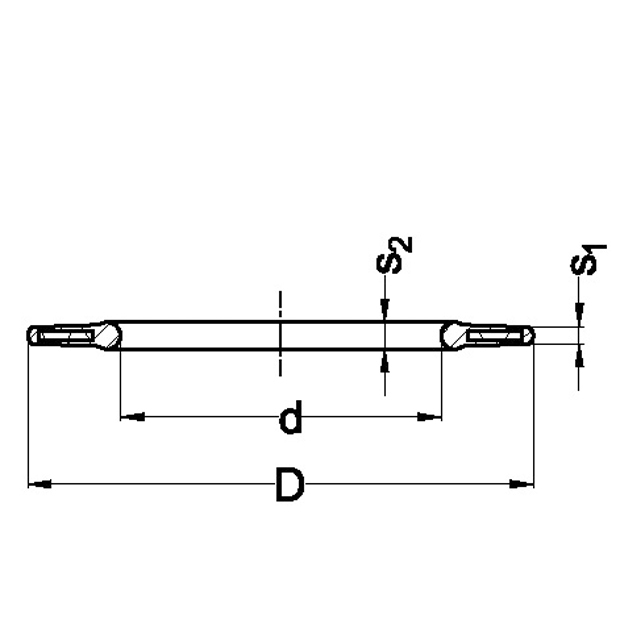

| Article | de/ | DN | d | D | S1 | S2 | kg |
|---|---|---|---|---|---|---|---|
| 5152 52216 | 160 | /150 | 135 | 218 | 6 | 8 | 0,150 |
| 5152 52220 | 200 | /200 | 168 | 273 | 6 | 8 | 0,200 |
| 5152 52225 | 250 | /250 | 208 | 328 | 6 | 8 | 0,250 |
| 5152 52231 | 315 | /300 | 262 | 378 | 6 | 8 | 0,300 |
