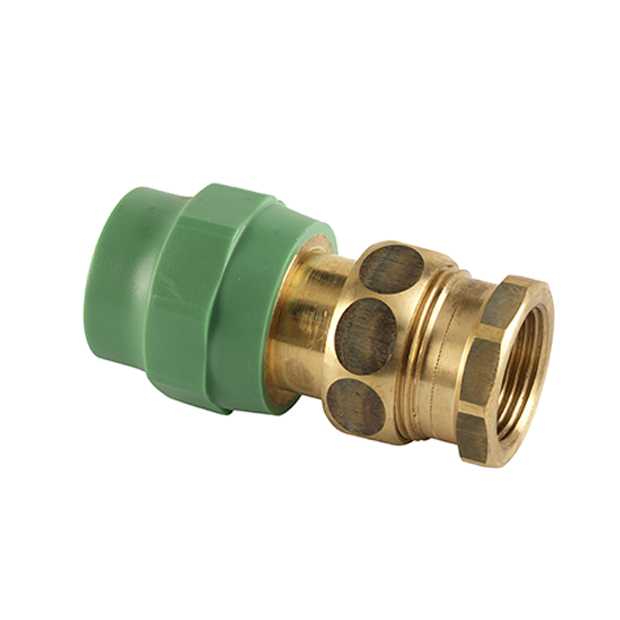

PIPE UNION BRASS FEMALE
SDR 6
Thread according to EN 10226 (ISO 7).
Flat sealed. Connection for metal thread.

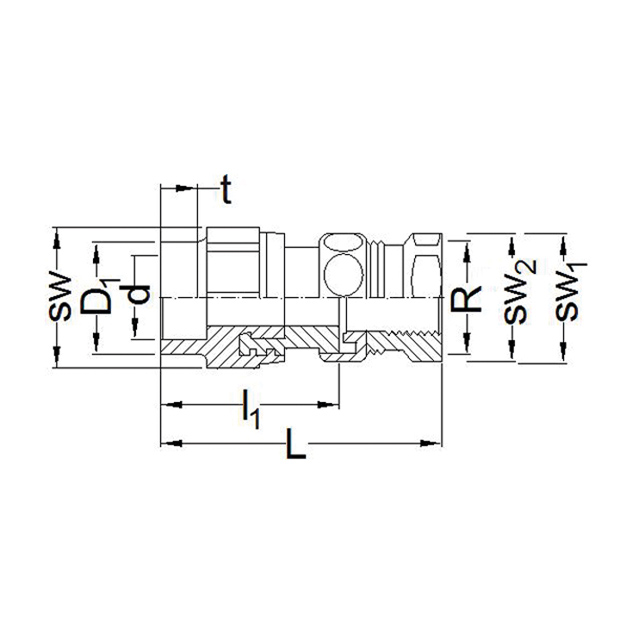

Article | d x R | G | D1 | L | l1 | SW | SW1 | |
---|---|---|---|---|---|---|---|---|
5155 29610 | 75 x 2½” | PP-RCT | 2¾ | 99 | 169 | 112 | 113 | 90 |
SDR 6
Thread according to EN 10226 (ISO 7).
Flat sealed. Connection for metal thread.
Article | d x R | G | D1 | L | l1 | SW | SW1 | |
---|---|---|---|---|---|---|---|---|
5155 29610 | 75 x 2½” | PP-RCT | 2¾ | 99 | 169 | 112 | 113 | 90 |
