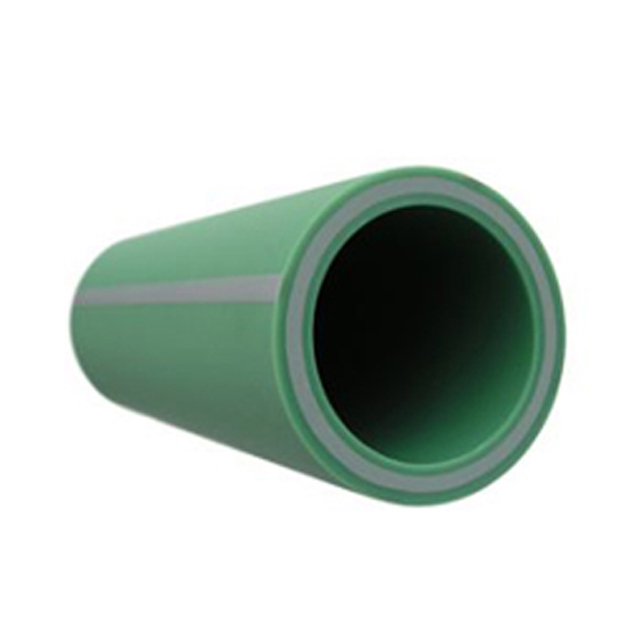

PIPE FIBER SDR 11 PP-RCT
length of pipes = 4 m
For hot and cold water, sanitary installations, air conditioning and climate control.
DIN 8077/8078 20°C/16 bar, 70°C/6 bar.
Striped.

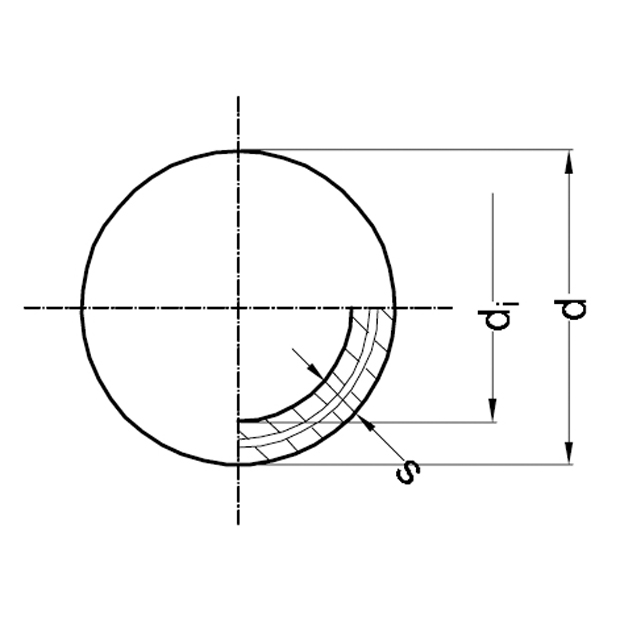

| Article | d x s | di | l/m | DN | kg | |
|---|---|---|---|---|---|---|
| 5152 27016 | 160 x 14,6 | 130,8 | 13,6 | 125 | 27,100 | |
| 5152 27020 | 200 x 18,2 | L = 5,8 m. | 163,6 | 21,0 | 150 | 42,560 |
| 5152 27025 | 250 x 22,7 | L = 5,8 m. | 204,6 | 32,9 | 200 | 66,440 |
