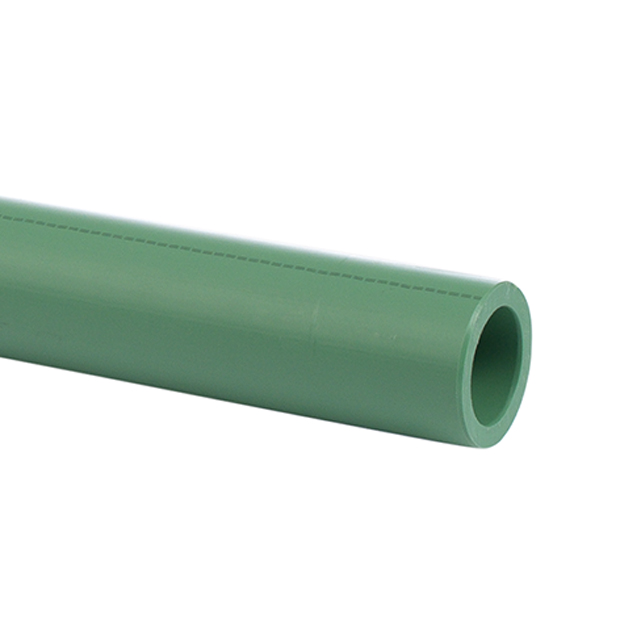

PIPE SDR 6 PP-R
length of pipes = 4 m
Suitable for hot and cold water, central heating and air conditioning.
ISO 15874 class 1/10, 2/8, 4/10, 5/6 bar.
DIN 8077/8078 20°C/20 bar, 70°C/10 bar.

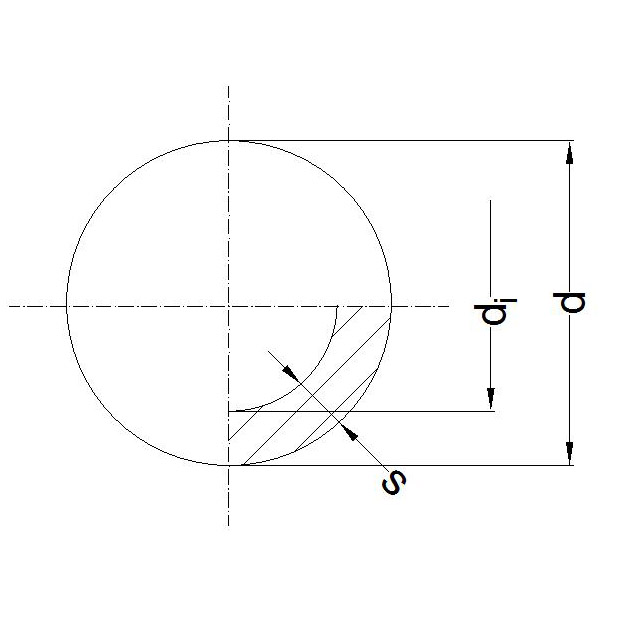

| Article | d x s | di | l/m | DN | kg |
|---|---|---|---|---|---|
| 5155 20002 | 20 x 3,4 | 13,2 | 0,137 | 12 | 0,724 |
| 5155 20003 | 25 x 4,2 | 16,6 | 0,216 | 15 | 1,116 |
| 5155 20004 | 32 x 5,4 | 21,2 | 0,353 | 20 | 1,824 |
| 5155 20005 | 40 x 6,7 | 26,6 | 0,556 | 25 | 2,820 |
| 5155 20006 | 50 x 8,3 | 33,2 | 0,876 | 32 | 4,388 |
| 5155 20007 | 63 x 10,5 | 42,0 | 1,385 | 40 | 6,660 |
| 5155 20008 | 75 x 12,5 | 50,0 | 1,963 | 50 | 9,816 |
| 5155 20009 | 90 x 15,0 | 60,0 | 2,827 | – | 14,104 |
| 5155 20010 | 110 x 18,3 | 73,2 | 4,208 | 65 | 21,068 |
| 5155 20011 | 125 x 20,8 | 83,4 | 5,463 | 80 | 27,140 |
