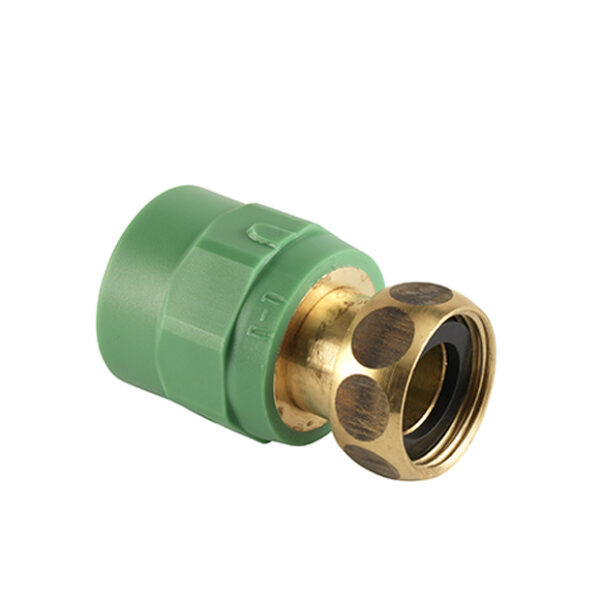

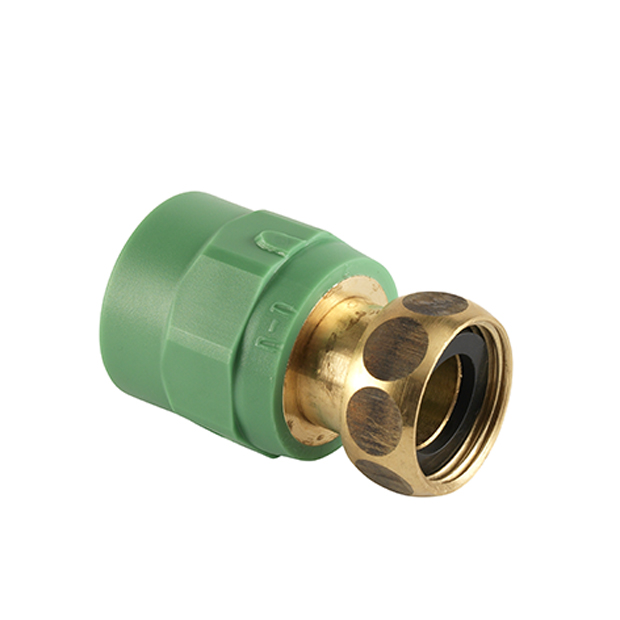

PIPE CONNECTION BRASS NUT FEMALE

0 out of 5

SDR 6
For the connection to ancillary equipment such as water meters.
Thread according to ISO 228-1.

Categories: All products, Fittings

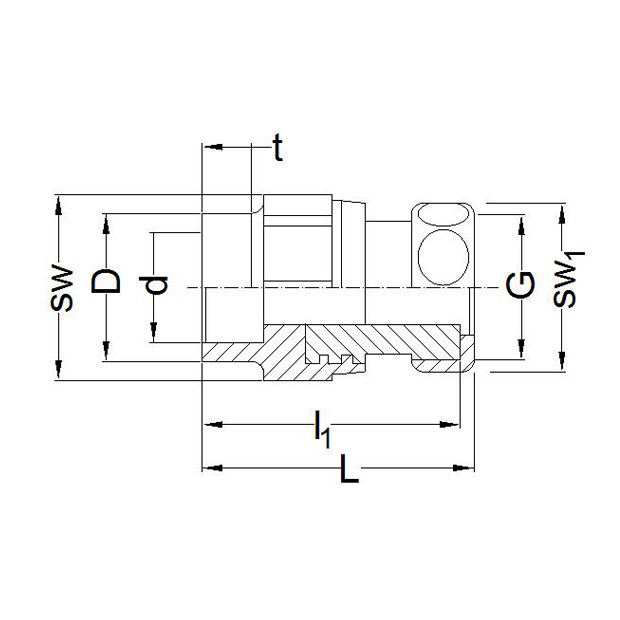

Article d x G D L l1 SW SW1 t kg
5155 29801 20 x ¾” 29 66 44 36 30 14 0,130
5155 29802 20 x 1″ 29 68 44 44 37 14 0,234
5155 29803 25 x ¾” 34 67 44 36 30 15 0,128
5155 29804 25 x 1″ 34 72 47 44 37 15 0,218
5155 29805 32 x 1″ 43 80 53 44 37 17 0,191
5155 29806 32 x 1¼” 43 80 53 51 46 17 0,398
5155 29807 40 x 1½” 52 90 58 63 52 18 0,477
5155 29808 50 x 1¾” 64 98 61 70 59 20 0,558
5155 29809 63 x 2⅜” 79 114 71 85 74 26 0,926
5155 29810 75 x 2¾” 99 131 86 113 90 29 1,954
