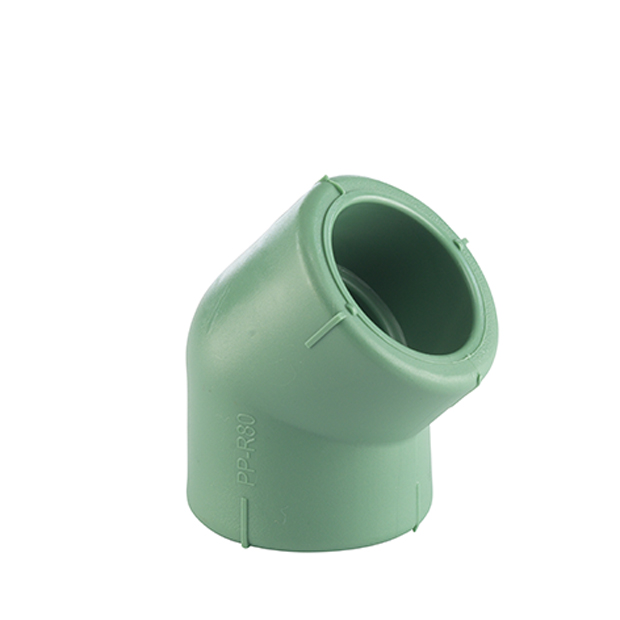

ELBOW 45°
SDR 6

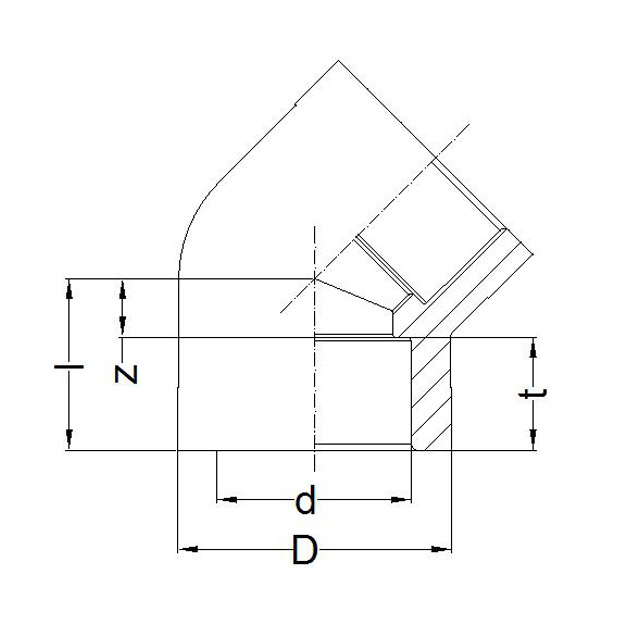

| Article | d | D | l | z | t | kg |
|---|---|---|---|---|---|---|
| 5155 23002 | 20 | 30,0 | 21,6 | 7,1 | 14 | 0,016 |
| 5155 23003 | 25 | 34,5 | 24,8 | 8,8 | 15 | 0,021 |
| 5155 23004 | 32 | 44,0 | 27,6 | 9,5 | 17 | 0,039 |
| 5155 23005 | 40 | 52,0 | 32,0 | 11,0 | 18 | 0,060 |
| 5155 23006 | 50 | 65,0 | 37,0 | 13,0 | 20 | 0,095 |
| 5155 23007 | 63 | 82,0 | 44,0 | 16,0 | 26 | 0,210 |
| 5155 23008 | 75 | 100,0 | 50,0 | 20,0 | 29 | 0,336 |
| 5155 23009 | 90 | 120,0 | 58,0 | 25,0 | 32 | 0,582 |
| 5155 23010 | 110 | 148,0 | 69,0 | 32,0 | 35 | 1,064 |
| 5155 23011 | 125 | 165,0 | 77,0 | 37,0 | 41 | 1,520 |
