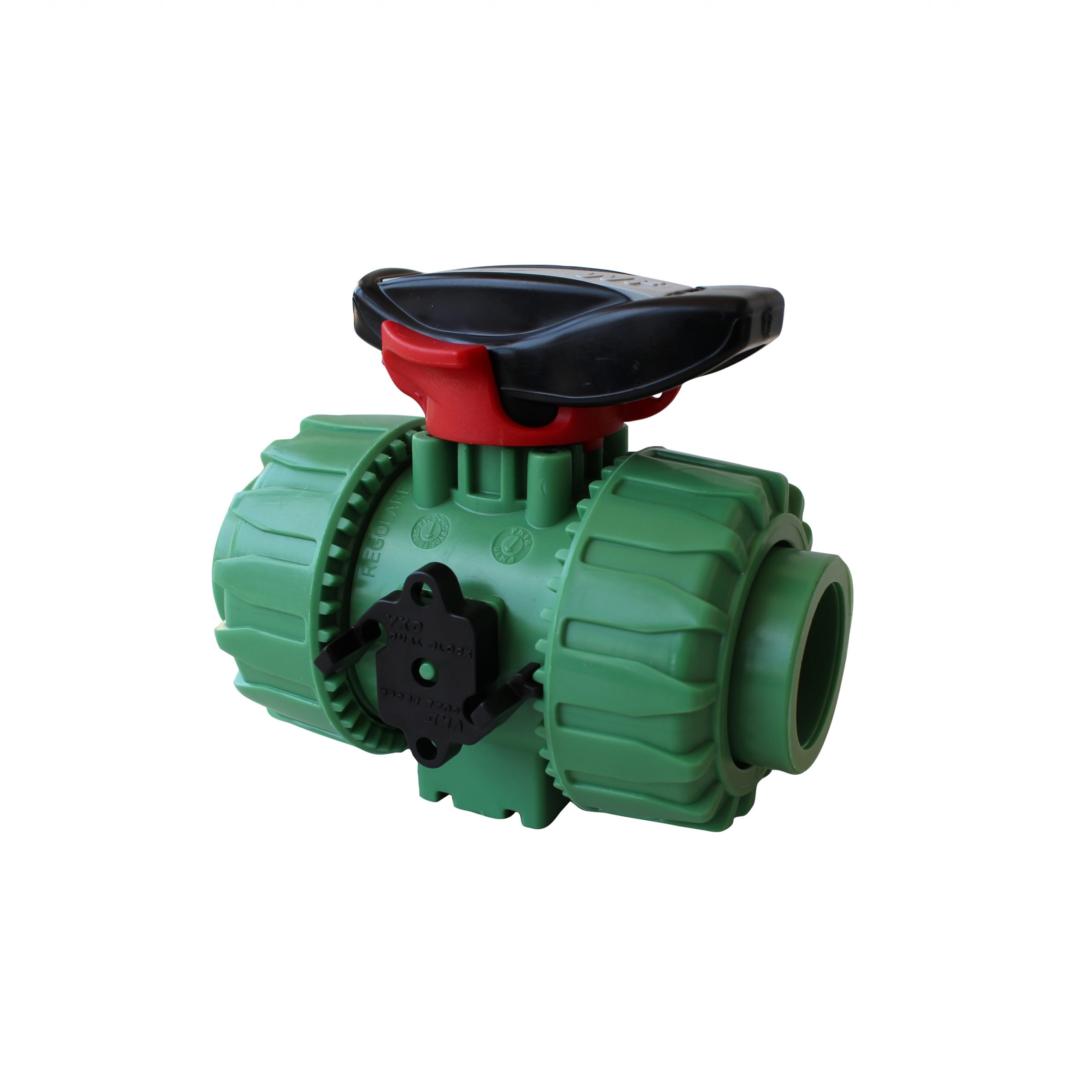

DOUBLE UNION BALL VALVE – DUAL BLOCK®
Body, unions, end sockets: PP-RCT
Ball and stem: PP-H
Handle: PVC
Seats: PTFE
O-rings: EPDM
ISO 16135 20°C/10 bar
| d | Item Code | B | B1 | C | C1 | E | H | H1 | Z | L | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 5152 65101 | 54 | 29 | 67 | 40 | 54 | 103 | 65 | 3 | 16 | 0,143 |
| 25 | 5152 65102 | 65 | 35 | 85 | 49 | 65 | 114 | 70 | 4 | 18 | 0,238 |
| 32 | 5152 65103 | 70 | 39 | 85 | 49 | 73 | 126 | 78 | 4 | 20 | 0,312 |
| 40 | 5152 65104 | 83 | 46 | 108 | 64 | 86 | 142 | 88 | 5 | 22 | 0,480 |
| 50 | 5152 65105 | 89 | 52 | 108 | 64 | 98 | 164 | 93 | 11 | 25 | 0,638 |
| 63 | 5152 65106 | 108 | 62 | 134 | 76 | 122 | 199 | 111 | 15 | 29 | 1,115 |
