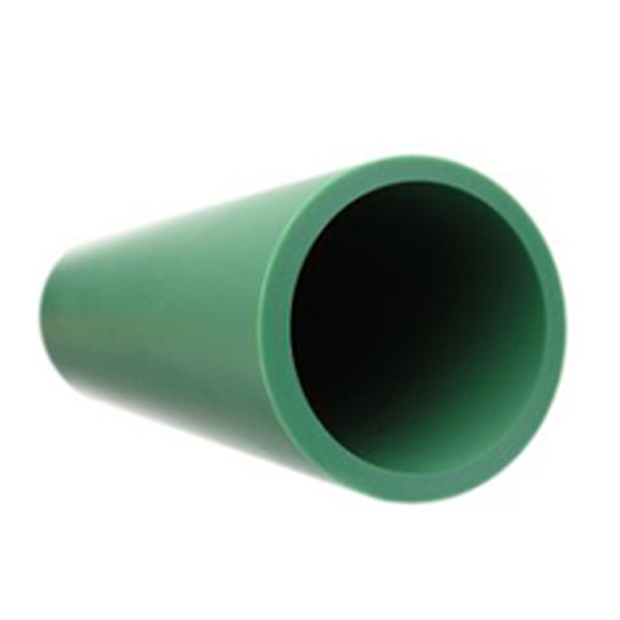

PIPE SDR 11 PP-RCT
length of pipes = 4 m
For hot and cold water, sanitary installations, air conditioning and climate control.
DIN 8077/8078 20°C/16 bar, 70°C/6 bar.
| Article | d x s | di | l/m | DN | kg | |
|---|---|---|---|---|---|---|
| 5152 25016 | 160 x 14,6 | 130,8 | 13,4 | 125 | 25,320 | |
| 5152 25020 | 200 x 18,2 | 163,6 | 21,0 | 150 | 39,232 | |
| 5152 25025 | 250 x 22,7 | L = 5,8 m. | 204,6 | 32,9 | 200 | 61,156 |
| 5152 25031 | 315 x 28,6 | L = 5,8 m. | 257,8 | 52,2 | 250 | 69,156 |
