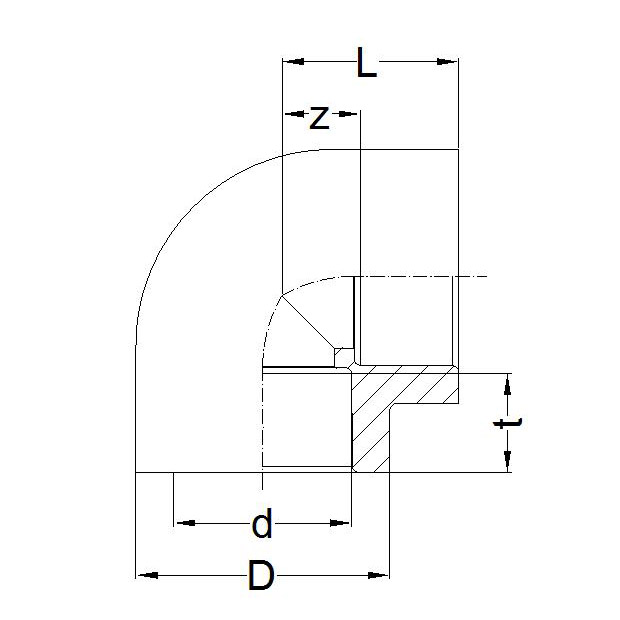

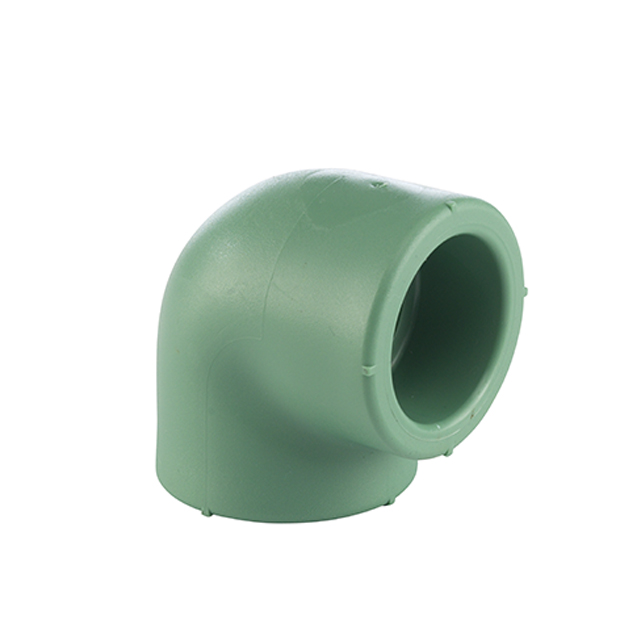

ELBOW 90°
SDR 6
| Article | d | D | L | z | t | kg |
|---|---|---|---|---|---|---|
| 5155 21002 | 20 | 29,5 | 25,8 | 11,3 | 14 | 0,018 |
| 5155 21003 | 25 | 34,2 | 29,9 | 13,9 | 15 | 0,024 |
| 5155 21004 | 32 | 44,0 | 34,0 | 15,9 | 17 | 0,048 |
| 5155 21005 | 40 | 53,0 | 43,5 | 23,0 | 18 | 0,081 |
| 5155 21006 | 50 | 70,0 | 49,0 | 25,5 | 20 | 0,167 |
| 5155 21007 | 63 | 86,5 | 60,8 | 33,4 | 26 | 0,275 |
| 5155 21008 | 75 | 102,5 | 67,3 | 36,3 | 29 | 0,472 |
| 5155 21009 | 90 | 120,5 | 78,3 | 42,8 | 32 | 0,748 |
| 5155 21010 | 110 | 148,0 | 99,0 | 62,0 | 35 | 1,437 |
| 5155 21011 | 125 | 165,0 | 124,0 | 84,0 | 41 | 2,340 |
