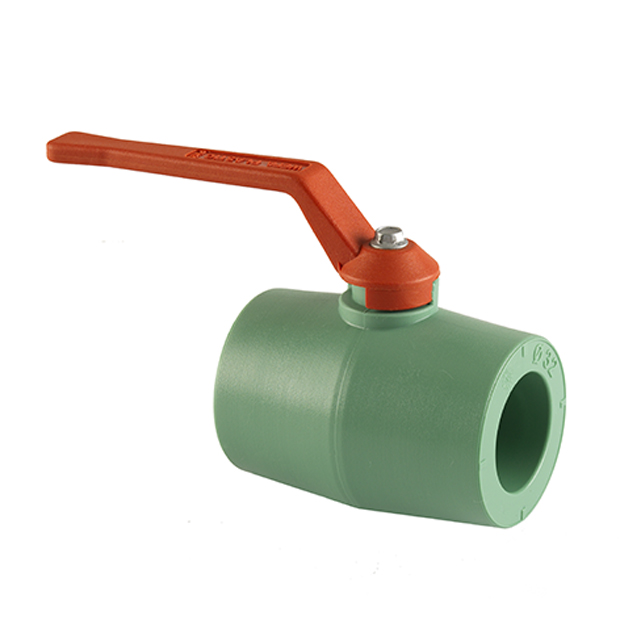

BALL VALVE
SDR 6
Handle: glass fiber reinforced polyamide PA6.
Ball and stem: brass.
PTFE seats, NBR O-ring.
Range: >0°C – 75°C.

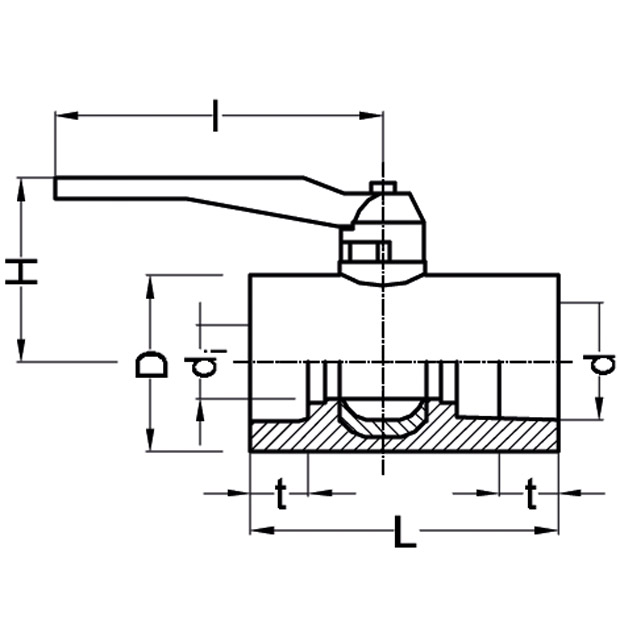

Article | d | L | t | H | l | di | kg |
---|---|---|---|---|---|---|---|
5155 25580 | 20 | 68 | 15 | 60 | 102 | 15 | 0,116 |
5155 25581 | 25 | 70 | 16 | 60 | 102 | 15 | 0,134 |
5155 25582 | 32 | 80 | 18 | 63 | 102 | 20 | 0,188 |
5155 25583 | 40 | 95 | 21 | 78 | 120 | 25 | 0,346 |
5155 25584 | 50 | 110 | 24 | 83 | 120 | 32 | 0,513 |
5155 25585 | 63 | 130 | 28 | 103 | 145 | 40 | 0,937 |
5155 25586 | 75 | 150 | 31 | 111 | 145 | 50 | 1,417 |
