SDR 6 Thread according to EN 10226 (ISO 7). For sealing we recommend PTFE tape.

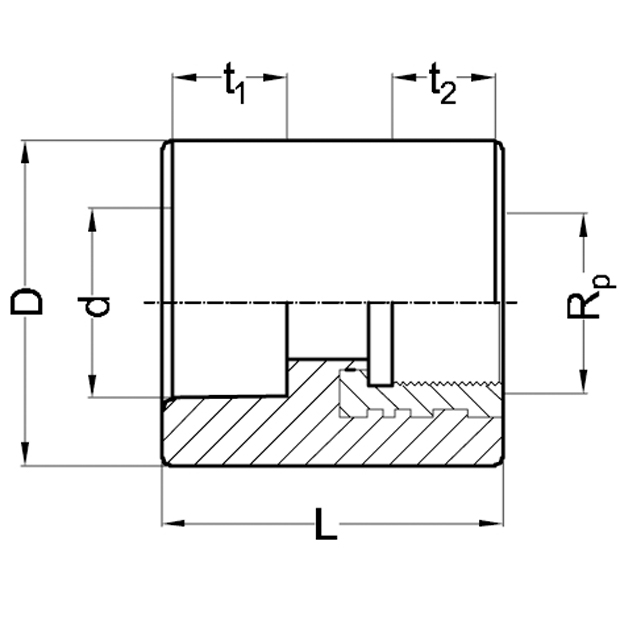

| Article | d x Rp | L | t1 | t2 | D | kg |
|---|---|---|---|---|---|---|
| 515528101 | 20 x ½“ | 42 | 15 | 17 | 41 | 0,072 |
| 515528102 | 20 x ¾“ | 44 | 15 | 17 | 47 | 0,100 |
| 515528103 | 25 x ½“ | 44 | 16 | 17 | 41 | 0,076 |
| 515528104 | 25 x ¾“ | 44 | 16 | 17 | 47 | 0,095 |
| 515528105 | 32 x ½“ | 44 | 18 | 17 | 43 | 0,105 |
