WELD-IN SADDLE MALE PP-RCT

SDR 6 Thread according to EN 10226 (ISO 7). For sealing we recommend PTFE tape.

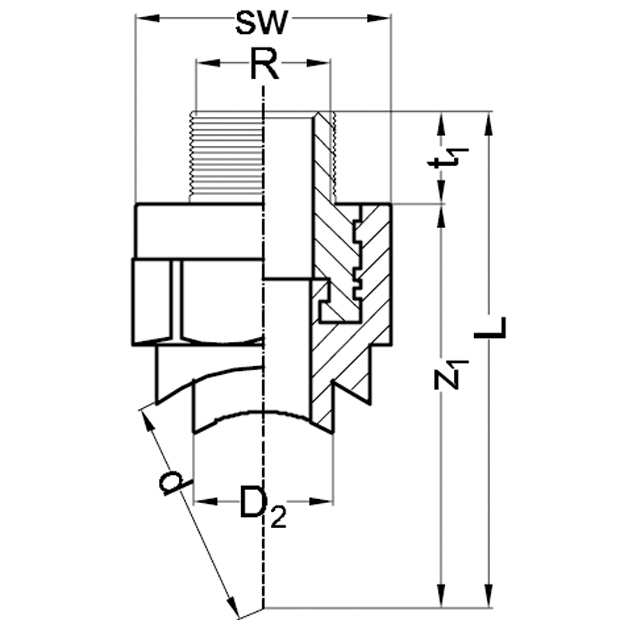

Article	d x R	D2	t1	z1	h	SW	kg
515243210	75-125 x 1″	40	20	18	63	38	0,197
515243211	75-125 x 1¼“	40	21	17	63	38	0,468
515243218	110-125 x 1½“	50	21	18	70	39	0,553
515243224	125 x 2″	63	24	21	85	45	0,919
515243226	160-250 x ½“	25	13	20	43	38	0,091
515243227	160-250 x ¾“	32	17	26	43	38	0,133
515243228	160-250 x 1″	40	20	36	56	63	0,234
515243229	160-250 x 1¼“	50	21	38	59	70	0,334
515243230	160-250 x 1½“	50	21	38	59	70	0,353
515243231	160-250 x 2″	63	24	46	70	85	0,633
515243237	315 x ½“	25	13	20	43	38	0,141
515243238	315 x ¾“	32	17	26	43	38	0,183
515243239	315 x 1″	40	20	36	56	63	0,239
515243240	315 x 1¼“	50	21	38	59	70	0,342
515243241	315 x 1½“	50	21	38	59	70	0,353
515243242	315 x 2″	63	24	46	70	85	0,648
