WELD-IN SADDLE FEMALE PP-RCT

SDR 6 Thread according to EN 10226 (ISO 7). For sealing we recommend PTFE tape.

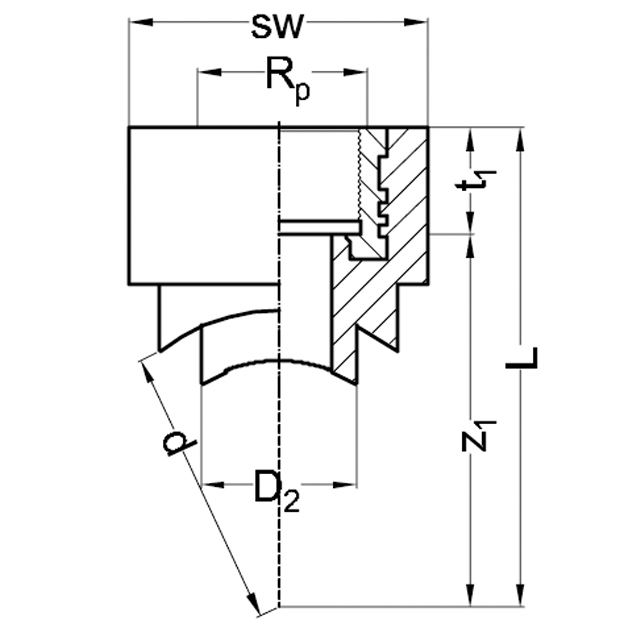

Article	d x Rp	D2	t1	z1	h	L	SW	kg
515243110	75-125 x 1″	40	22	16	63	–	38	0,104
515243111	75-125 x 1¼“	50	22	17	63	–	39	0,247
515243118	110-125 x 1½“	50	20	19	70	–	39	0,292
515243124	125 x 2″	63	25	20	85	–	45	0,485
515243126	160-250 x ½“	25	17	12	29	–	38	0,071
515243127	160-250 x ¾“	32	17	12	29	–	38	0,112
515243128	160-250 x 1″	40	22	16	38	–	63	0,197
515243129	160-250 x 1¼“	50	22	17	39	–	70	0,243
515243130	160-250 x 1½“	50	20	19	39	–	70	0,240
515243131	160-250 x 2″	63	25	20	45	–	85	0,490
515243137	315 x ½“	25	17	12	29	–	38	0,121
515243138	315 x ¾“	32	17	12	29	–	38	0,162
515243139	315 x 1″	40	22	16	38	–	63	0,240
515243140	315 x 1¼“	50	22	17	39	–	70	0,247
515243141	315 x 1½“	50	20	19	39	–	70	0,242
515243142	315 x 2″	63	25	20	45	–	85	0,484
