length of pipes = 4 m Suitable for hot and cold water, central heating and air conditioning. ISO 15874 class 1/8, 2/6, 4/10, 5/6 bar. DIN 8077/8078 20°C/16 bar, 70°C/8 bar.

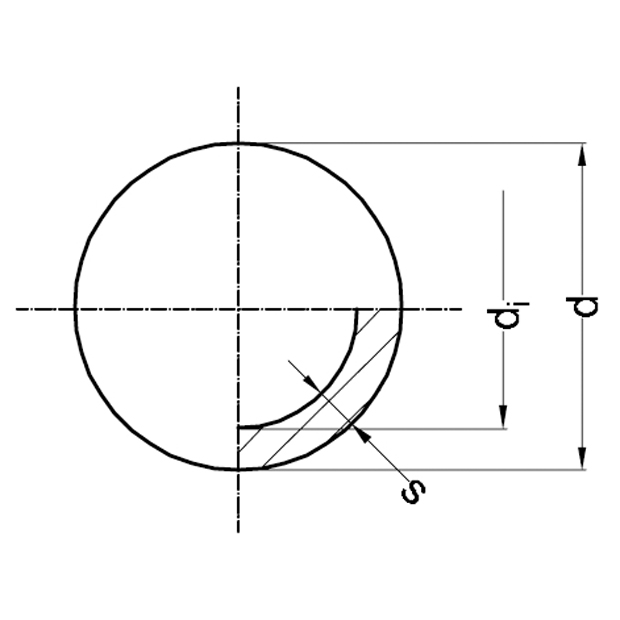

| Article | d x s | di | l/m | DN | kg |
|---|---|---|---|---|---|
| 515520101 | 20 x 2,8 | 14,4 | 0,163 | 15 | 0,624 |
| 515520102 | 25 x 3,5 | 18,0 | 0,254 | 20 | 0,968 |
| 515520103 | 32 x 4,4 | 23,2 | 0,423 | 25 | 1,564 |
| 515520104 | 40 x 5,5 | 29,0 | 0,661 | 32 | 2,432 |
| 515520105 | 50 x 6,9 | 36,2 | 1,029 | 40 | 3,760 |
| 515520106 | 63 x 8,6 | 45,8 | 1,647 | 50 | 5,936 |
| 515520107 | 75 x 10,3 | 54,4 | 2,324 | – | 8,444 |
| 515520108 | 90 x 12,3 | 65,4 | 3,359 | 65 | 12,124 |
| 515520109 | 110 x 15,1 | 79,8 | 5,001 | 80 | 18,072 |
| 515520110 | 125 x 17,1 | 90,8 | 6,475 | 100 | 23,212 |
