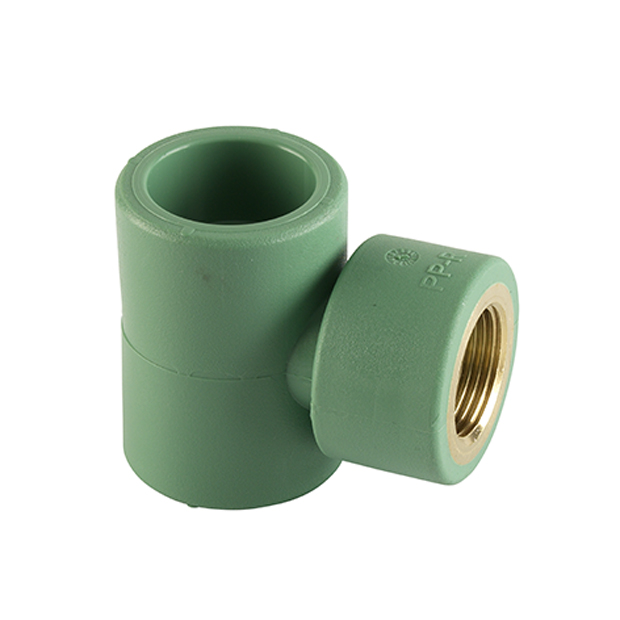

TRANSITION TEE FEMALE
SDR 6
Thread according to EN 10226 (ISO 7).
For sealing we recommend PTFE tape.

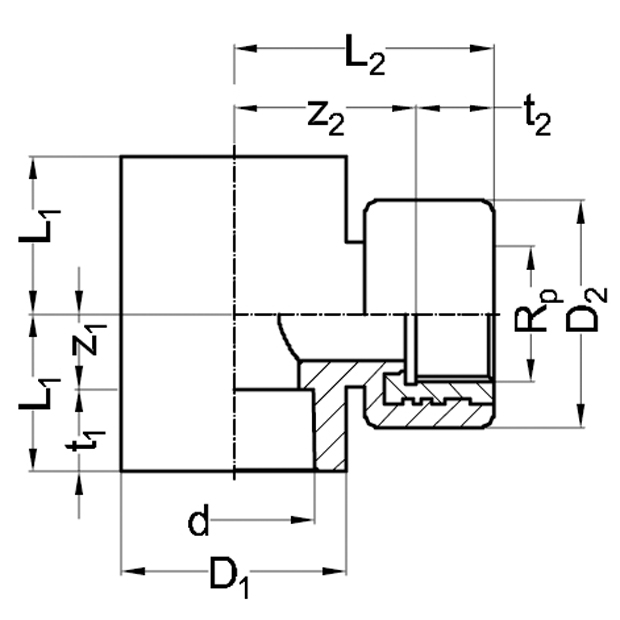

| Article | d x Rp | L1 | t1 | z1 | L2 | t2 | Z2 | |
|---|---|---|---|---|---|---|---|---|
| 5155 29301 | 20 x ½” | 64 | 15 | 17 | 37 | 15 | 22 | |
| 5155 29302 | 20 x ¾” | 79 | 15 | 24 | 37 | 15 | 22 | |
| 5155 29303 | 25 x ½” | 65 | 16 | 16 | 38 | 15 | 23 | |
| 5155 29304 | 25 x ¾” | 79 | 16 | 24 | 37 | 15 | 22 | |
| 5155 29305 | 32 x ¾” | 60 | 18 | 12 | 50 | 15 | 35 | |
| 5155 29306 | 32 x 1″ | with hexagon for wrench | 62 | 18 | 13 | 65 | 22 | 43 |
